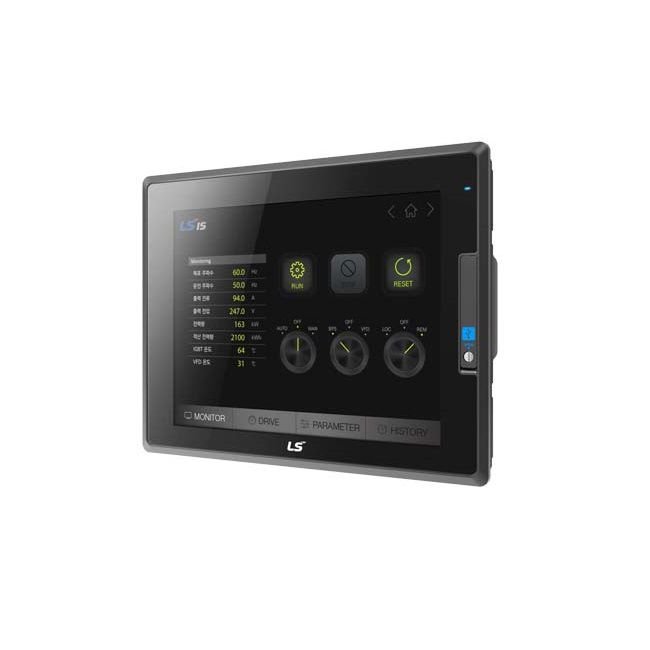

| Item | iXP2-0800A |
| Display type | |
| Screen size | 8.4″ |
| Display resolution | 800 x 600 pixel |
| Color indication | 24-bit color (16.7M colors) |
| Indication degree | Right and left: 80 deg. |
| Top: 80 deg. | |
| Bottom: 60 deg. | |
| Backlight | LED method, automatic On / Off support |
| Backlight lifetime | 50,000 hours |
| Touch panel | Capacitive touch |
| Audio output | Magnetic Buzzer (85dB) |
| Process | 1GHz, Dual-Core CPU |
| Memory | |
| Flash | 1GByte |
| Operating RAM | 1GByte |
| Backup RAM | 1MByte |
| Backup data | Date / Time data, Logging / Alarm / Recipe data, Non-volatile devices |
| Battery | CR2032(3.0V/210mAh, About 3years/25℃) |
| Video Out | 1 x HDMI |
| Ethernet | 1 x 10Base-T / 100Base-TX, 1 x 10Base-T / 100Base-TX / 1000Base-T |
| USB host | 3 x USB 2.0 (Front x 1, Rear x 2) |
| USB device | 1 x USB 2.0 (Send / Receive front, PC and project data etc.) |
| RS-232C | 1 x RS-232C (DSUB 9 / Male type) |
| RS-422/485 | 1 x RS-422/485 (Terminal Block) |
| Multi-language | Can display 12 languages simultaneously |
| Animation | GIF format support |
| Recipe | Support |
| Data logging | Support |
| Script Launcher | Support |
| Standard Certification | CE, KC, UL, IECEx, ATEX, KCs |
| Protection standard | IP66, Conform to the UL type 4x, NEMA 4x standard |
| Explosion proof | Ex nA IIC T5 Gc, Ex tc IIIC T100℃ Dc IP64 |
| Dimension (mm) | 240 × 180 × 60 |
| Panel cut (mm) | 228.5 x 158.5 |
| Power | 110-220V |
| Power consumption (W) | 25 |
| Weight(Kg) | 1.87 |
