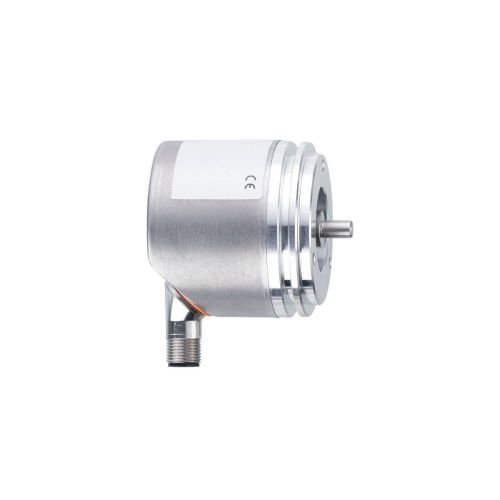

| Product characteristics | ||
|---|---|---|
| Resolution | 8192 steps; 16 revolutions; 13 bit | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Electrical data | ||
| Operating voltage [V] | 8…30 DC | |
| Current consumption [mA] | < 150 | |
| Protection class | III | |
| Reverse polarity protection | yes | |
| Max. power-on delay time [ms] | 500 | |
| Settling time [ms] | 32 | |
| Max. revolution electrical [U/min] | 12000 | |
| Mechanical data | ||
| Weight [g] | 347.5 | |
| Dimensions [mm] | Ø 58 / L = 63.5 | |
| Materials | flange: aluminium; housing: stainless steel (1.4521 / 444) | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Max. starting torque [Nm] | 1 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Shaft material |
|
|
| stainless steel | ||
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 60 | |
| Fixing flange | synchro-flange |
