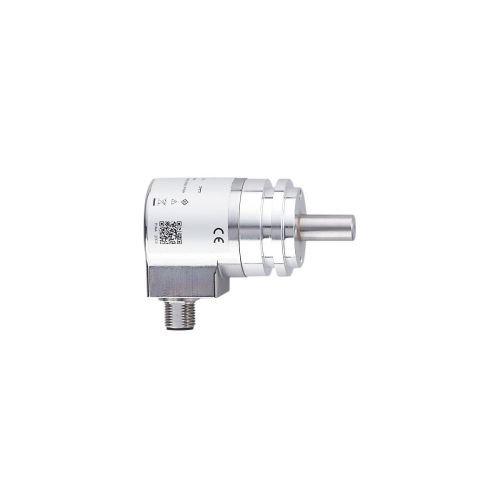

| Product characteristics | ||
|---|---|---|
| Resolution | 4096 steps; 4096 revolutions; 24 bit | |
| Communication interface | CAN | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Electrical data | ||
| Operating voltage [V] | 9…30 DC | |
| Current consumption [mA] | < 100; ((10 V DC) ; ? 50 (24 V DC)) | |
| Protection class | III | |
| Reverse polarity protection | yes | |
| Mechanical data | ||
| Weight [g] | 308 | |
| Dimensions [mm] | Ø 36.8 / L = 76 | |
| Materials | flange: aluminium; housing cap: steel scratch-resistant cathodic dip coating | |
| Max. revolution, mechanical [U/min] | 6000 | |
| Max. starting torque [Nm] | 5 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
|
|
| steel (1.4104) | ||
| Max. shaft load axial (at the shaft end) [N] | 180 | |
| Max. shaft load radial (at the shaft end) [N] | 180 | |
| Fixing flange | synchro-flange |
