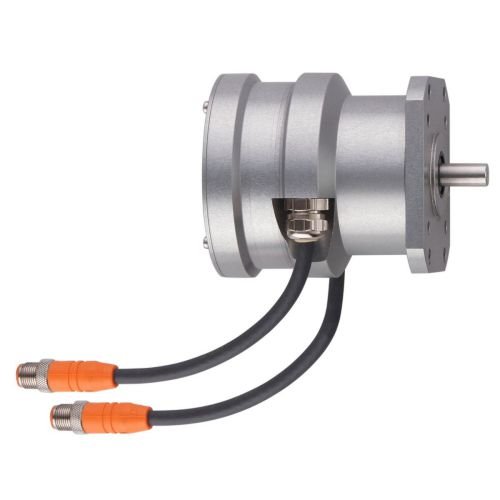

| Product characteristics | ||
|---|---|---|
| Resolution | 8192 revolutions; 13 bit | |
| Communication interface | SSI data interface | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Electrical data | ||
| Operating voltage [V] | 10…30 DC | |
| Current consumption [mA] | < 100 | |
| Mechanical data | ||
| Weight [g] | 1342.7 | |
| Dimensions [mm] | Ø 89 / L = 116 | |
| Materials | flange: aluminium anodised; housing: aluminium anodised | |
| Max. revolution, mechanical [U/min] | 6000 | |
| Max. starting torque [Nm] | 4 | |
| Reference temperature torque [°C] | 25 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
|
|
| stainless steel (1.4305 / 303) | ||
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Electrical connection – SSI 1 | ||
| Connection | Cable: 0.15 m, PUR | |
| Connection | Connector: 1 x M12 |
